LiuGong 6015E Mini Roller – Compact Vibratory Roller for Roadwork & Landscaping in Saudi Arabia

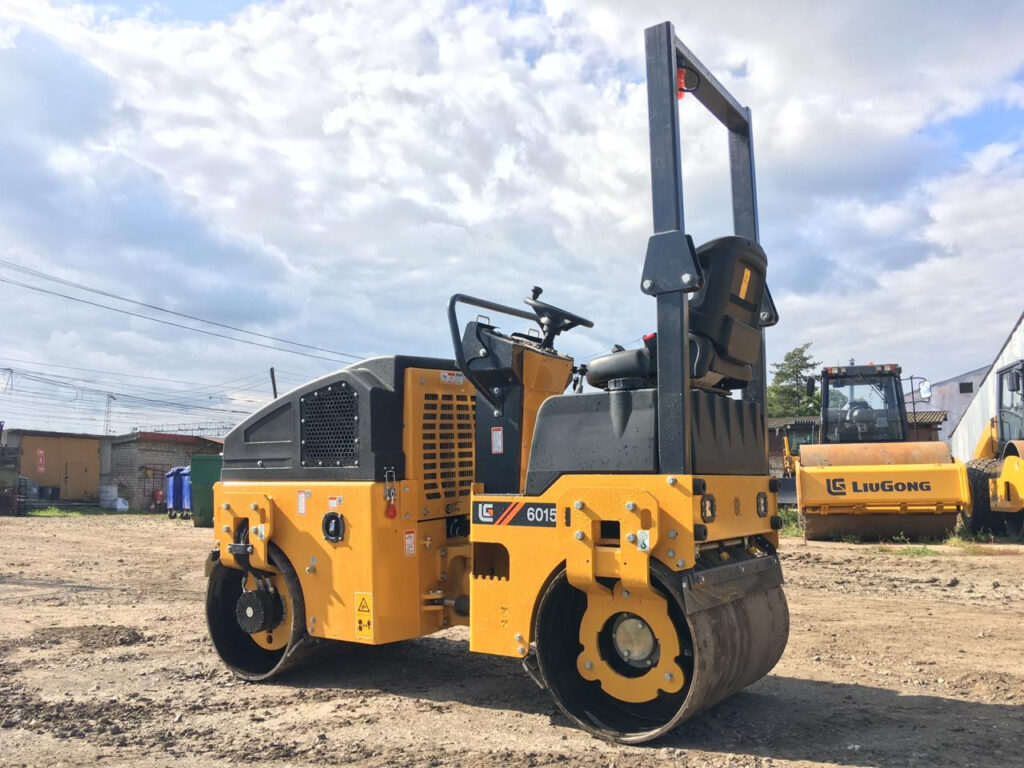

The LiuGong 6015E Mini Vibratory Roller is a compact and efficient solution for light compaction applications, including road maintenance, landscaping, and pavement projects.
Powered by a reliable Kubota D722-EF01 diesel engine, the 6015E delivers 14.7 kW (20 hp) of power with low fuel consumption and excellent maneuverability.
With an operating weight of 1,675 kg, 900 mm drum width, and 110-liter water tank, this roller is ideal for use in tight urban spaces and Saudi climate conditions.
Its durable build, high-frequency vibration system, and easy-to-service design make it a trusted choice for contractors worldwide.
Configuration parameters
| ENGINE | Emission Regulation | Tier 3 / Stage III |
| Manufacturer | Kubota | |
| Model | D722-EF01 | |
| Rated Power | 14.7 kW (20 hp) @ 3,600 rpm | |
| Peak Torque | 45.8 N·m | |
| Number of Cylinders | 3 | |
| Aspiration | Natural | |
| Displacement | 0.719 L | |
| ELECTRICAL SYSTEM | System Voltage | 12V/65A |
| Battery | 12V/60Ah | |
| DRIVE TRAIN | Theoretical Gradeability | 30% |
| Maximum Speed, Fwd | 7 km/h | |
| Min. Outside Turning Radius | 3,500 mm | |
| PERFORMANCE | Front Drum Static Linear Load | 90 N/cm |
| Rear Drum Static Linear Load | 93 N/cm | |
| Number of Vibrating Drums | 1 | |
| Nominal Amplitude | 0.4 mm | |
| Vibration Frequency | 60 Hz | |
| Centrifugal Force | 23.5 kN | |
| Drum Diameter | 560 mm | |
| OPERATING WEIGHT | Operating Weight | 1,675 kg |
| Weight on Front Drum | 825 kg | |
| Weight on Rear Drum | 850 kg | |
| SERVICE CAPACITIES | Fuel Tank | 23 L |
| Engine Oil | 3.8 L | |
| Hydraulic Oil Tank | 25 L | |
| Cooling System | 5 L | |
| Vibrating Housing | 3.5×1 L | |
| Water Tank | 110 L | |
| Overall Length | 2,300 mm | |
| DIMENSIONS | Overall Width | 990 mm |
| Compaction Width | 900 mm | |
| Wheelbase | 1,700 mm | |
| Steering Angle | 30° | |
| Min. Ground Clearance | 210 mm | |
| Overall Height | 2,276 mm | |
| Swing Angle | 7±1° |
