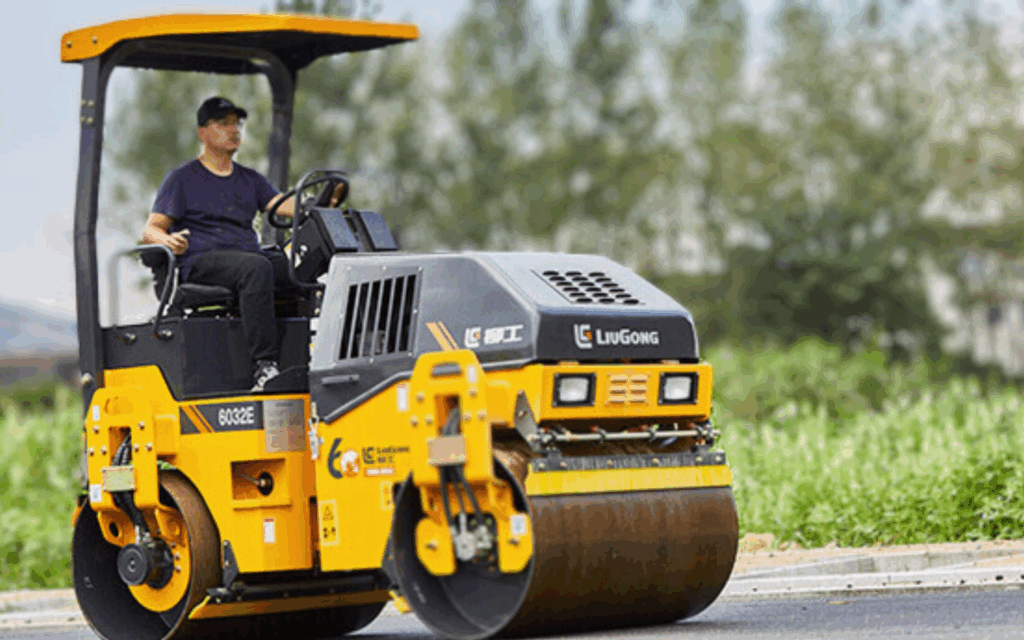

LiuGong 6032E Tandem Vibratory Roller – Power, Precision & Performance
The LiuGong 6032E is a heavy-duty tandem vibratory roller designed to deliver outstanding compaction performance for large-scale road projects.
Equipped with a powerful Perkins 403D-15T turbo engine and dual vibrating drums, it delivers up to 33.5 kN of centrifugal force.
With a wide 1,200 mm working width, hydrostatic drive, and articulated hydraulic steering, the 6032E ensures smooth operation and precise control on asphalt and soil. Perfect for road construction contractors across Saudi Arabia .
Configuration parameters
| ENGINE | Emission Regulation | Tier 3 / Stage III |
| Manufacturer | Perkins | |
| Model | 403D-15T | |
| Rated Power | 27.3 kW (36 hp / 37 ps) @ 2,600 rpm | |
| Peak Torque | 115 N·m | |
| Number of Cylinders | 3 | |
| Aspiration | Turbo | |
| Cooling Type | Water | |
| ELECTRICAL SYSTEM | System Voltage | 12 V |
| DRIVE TRAIN | Theoretical Gradeability | 30% |
| Transmission Type | Hydraulic | |
| Maximum Speed, fwd | 9.5 km/h | |
| Min. Outside Turning Radius | 4,100 mm | |
| AXLES | Steering System | Hydraulic |
| Steering Method | Articulation | |
| Steering Angle | ±30° | |
| Steering Relief Pressure | 16 MPa | |
| BRAKES | Service Brake Type | Hydraulic |
| HYDRAULIC SYSTEM | Main Pump Type | Piston Pump |
| Main Relief Pressure | 18 MPa | |
| PERFORMANCE (DOUBLE DRIVE, DOUBLE VIBRATION) | Front Drum Static Linear Load | 135 N/cm |
| Rear Drum Static Linear Load | 145 N/cm | |
| Number of Vibrating Drums | 2 | |
| Nominal Amplitude | 0.45 mm | |
| Vibration Frequency | 60 Hz | |
| Centrifugal Force | 33.5 kN | |
| Number of Amplitude Settings | 1 | |
| OPERATING WEIGHTS | Operating Weight | 3,360 kg |
| Weight on Front Drum | 1,620 kg | |
| Weight on Rear Drum | 1,740 kg | |
| SERVICE CAPACITIES | Fuel Tank | 60 L |
| Engine Oil | 7 L | |
| Hydraulic Oil Tank | 54 L | |
| Cooling System | 12 L |
