NFLG Crushers – Mobile Jaw Crushing Solutions for Saudi Projects

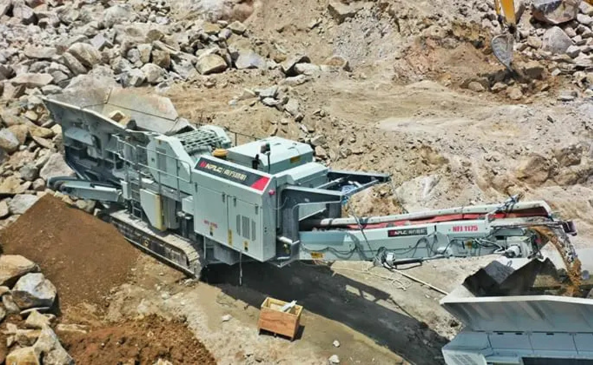

The NFLG NFJ1175 crawler mobile jaw crusher is engineered for high efficiency, reliability, and ease of transport.
Designed for primary crushing of aggregates, mining operations, and solid waste treatment, it delivers powerful performance with intelligent control and low maintenance.
Key Advantages:
- High crushing ratio and productivity
- Compact and mobile structure for easy transport
- Advanced control system with intelligent monitoring
- Suitable for mine crushing, sand & aggregate processing, and recycling.
Configuration parameters
| Scope Of Application | Primary Crushing For Aggregate Treatment, Solid Waste Treatment, Mining, Etc. |
| Crusher Model | JW1175E |
| Driving Mode | Motor Drive With Frequency Converter |
| Maximum Feed Size（Mm） | 650 |
| Crusher Speed（Rpm） | 230-280 |
| Engine Type/Power（KW） | Perkins 1104/74.5 |
| Engine Speed（Rpm） | 2200 |
| Pre-Screening Configuration | Integrated Pre-Screening |
| Receiving Hopper Capacity（M³） | 9 |
| Expanded Hopper Capacity (M³) Optional | N/A |
| Maximum Capacity（Mtph） | 475 |
| Weight (T) (Excluding Side Belt And Iron Remover) | 50 |
| Transportation Dimension L×W×H（M） | 14.5×2.9×3.5 |
| WorKing Dimension L×W×H（M） | 15.7×6.2×4 |
