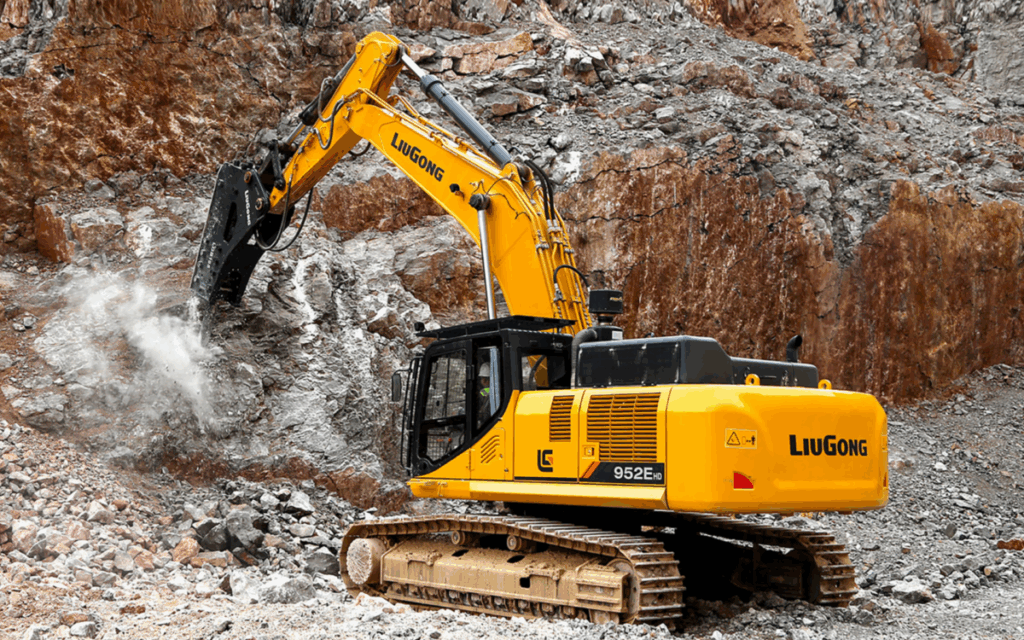

LiuGong 952EHD Excavator – 49 Ton Heavy-Duty Crawler with 3.2 m³ Bucket | Powerful Excavator in Saudi Arabia
The LiuGong 952EHD Excavator is a heavy-duty 49.5-ton crawler excavator designed for large-scale construction, mining, and quarry operations.
Built with a reliable Cummins QSM11 engine and a powerful 3.2 m³ bucket, this excavator delivers maximum productivity and efficiency.
Whether you’re operating in Saudi Arabia’s rugged environments or handling demanding global job sites, the 952EHD guarantees unmatched performance, durability, and fuel efficiency.
It is the ideal choice for contractors and fleet owners looking for a strong excavator for rocky soil, deep digging, and mass earthworks.
Configuration parameters
| PERFORMANCE PARAMETERS | Operating Weight | 49,500 kg |
| Std. Bucket Heaped Capacity (Referenced) | 3.2 m3 | |
| Maximum Travel Speed | 5.3 km/h | |
| Swing Speed | 8.5 rpm | |
| Drawbar Pull | 386 kN | |
| Bucket Digging Force (ISO) | 290 kN | |
| Arm Digging Force (ISO) | 268 kN | |
| ENGINE | Emission Regulation | Tier 3 / Stage IIIA |
| Manufacturer | Cummins | |
| Model | QSM11 | |
| Rated Power | 280 kW (375 hp / 381 ps) @ 2,000 rpm | |
| Net Power | 260 kW (349 hp / 354 ps) @ 2,000 rpm | |
| Peak Torque | 1,898 N·m @ 1,400 rpm | |
| Number of Cylinders | 6 | |
| Displacement | 10.8 L | |
| UNDERCARRIAGE | Number of Shoes per Side | 53 |
| Number of Bottom Rollers per Side | 9 | |
| Number of Upper Rollers per Side | 2 | |
| HYDRAULIC SYSTEM | Main Pumps Total Flow | 2 x 380 L/min |
| Relief Pressure, main | 34.3 MPa | |
| Relief Pressure, boost | 37.2 MPa | |
| SERVICE CAPACITIES | Fuel Tank | 650 L |
| Engine Oil | 37.8 L | |
| Cooling System | 50 L | |
| Hydraulic Reservoir | 290 L | |
| Hydraulic System Total | 470 L |
