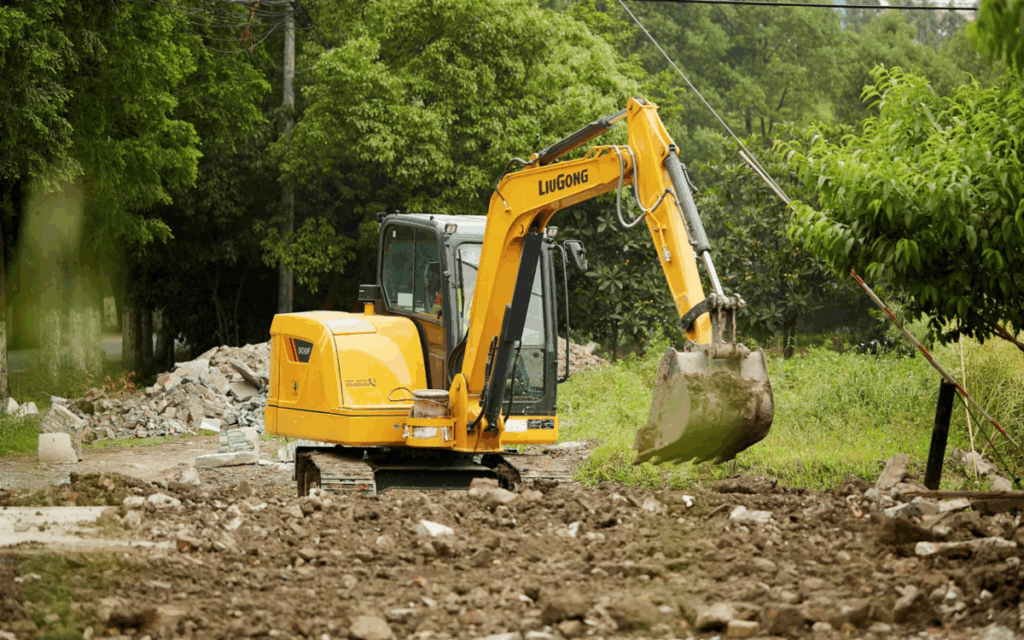

LiuGong 906F Compact Excavator – Precision and Power for Tight Job Sites
The LiuGong 906F is a compact excavator designed for efficiency, reliability, and maneuverability in confined job sites.
Equipped with a fuel-efficient Yanmar 4TNV94L-ZCWC engine, this 5.9-ton machine delivers 35.9 kW of rated power and a digging depth of up to 3,850 mm.
Its fast swing speed, strong drawbar pull, and ISO-certified digging forces make it the perfect solution for urban infrastructure, landscaping, and utility work across Saudi Arabia .
Configuration parameters
| PERFORMANCE PARAMETERS | Operating Weight | 5,900 kg |
| Std. Bucket Heaped Capacity (Referenced) | 0.21 m3 | |
| Maximum Travel Speed | 4.1 km/h | |
| Swing Speed | 10.3 r/min | |
| Drawbar Pull | 57 kN | |
| Bucket Digging Force (ISO) | 41 kN | |
| Arm Digging Force (ISO) | 31 kN | |
| ENGINE | Make | Yanmar |
| Model | 4TNV94L-ZCWCLY | |
| Rated Power | 35.9 kW (48 hp / 49 ps) @ 2,000 rpm | |
| Net Power | 34.5 kW (46 hp / 47 ps) @ 2,000 rpm | |
| Peak Torque | 209 N·m @ 1,400 rpm | |
| Number of Cylinders | 4 | |
| Displacement | 3.054 L | |
| UNDERCARRIAGE | Shoe Width | 400 mm |
| Number of Shoes per Side | 40 | |
| Number of Upper Rollers per Side | 1 | |
| Number of Bottom Rollers per Side | 5 | |
| SERVICE CAPACITIES | Fuel Tank | 114 L |
| Engine Oil | 12 L | |
| Cooling System | 8.8 L | |
| Hydraulic Reservoir | 70.5 L | |
| Hydraulic System Total | 112 L | |
| HYDRAULIC SYSTEM | Main Pumps Total Flow | 136 L/min |
| Relief Pressure, main | 25 Mpa |
