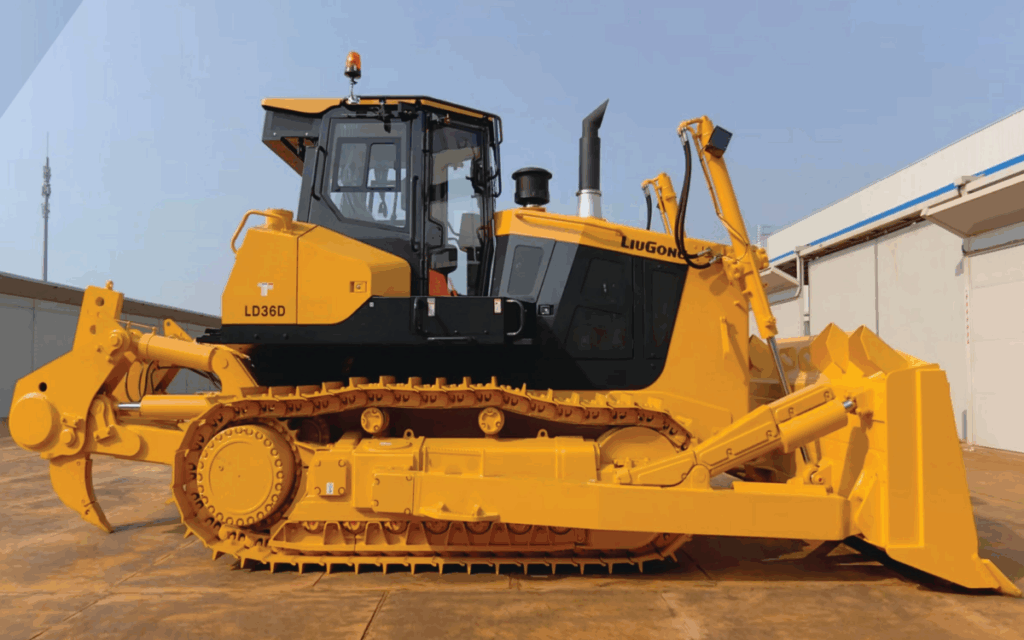

LiuGong LD36D Bulldozer – 40 Ton Power Shift Dozer with 11.7 m³ Blade | High Performance in Saudi Arabia
The LiuGong LD36D Bulldozer is a powerful 40-ton crawler dozer built to tackle heavy-duty earthmoving tasks in construction, mining, and large-scale site preparation.
Equipped with a robust ChongQing Cummins NTAA855-C375S20 engine, the LD36D delivers 280 kW (381 hp) of gross power and 11.7 m³ blade capacity for exceptional productivity.
This dozer features a power shift transmission, durable undercarriage, and advanced blade control system – making it ideal for tough Saudi terrain and global job sites that demand performance, reliability, and operator comfort.
Configuration parameters
| ENGINE | Emission Regulation | Tier 2 / Stage II |
| Make | ChongQing Cummins | |
| Model | NTA855-C375S20 | |
| Gross Power | 280 kW (375 hp / 381 ps) @ 2,000 rpm | |
| Net Power | 246 kW (330 hp / 334 ps) @ 2,000 rpm | |
| Peak Torque | 1,627 N·m | |
| Number of Cylinders | 6 | |
| Aspiration | Turbocharged | |
| Displacement | 14 L | |
| TRANSMISSION | Transmission Type | Power shift |
| Maximum Travel Speed, fwd | 11.0 km/h | |
| Maximum Travel Speed, rev | 13.3 km/h | |
| Number of Speeds, fwd | 3 | |
| Number of Speeds, rev | 3 | |
| ELECTRICAL SYSTEM | System Voltage | 24 V |
| BLADE PERFORMANCE | Blade Type (referenced) | Semi-U blade |
| Blade Capacity (referenced) | 11.7 m³ | |
| Blade Width | 4,050 mm | |
| Blade Height | 1,760 mm | |
| Blade Depth below Ground | 600 mm | |
| Blade Lift above Ground | 1,270 mm | |
| Blade Tilt | 880 mm | |
| SERVICE CAPACITIES | Fuel Tank | 830 L |
| Engine Oil | 47 L | |
| Cooling System | 58 L | |
| Hydraulic System Total | 130 L | |
| Transmission and Torque Converter | 257 | |
| Final Drives, each | 128 |
