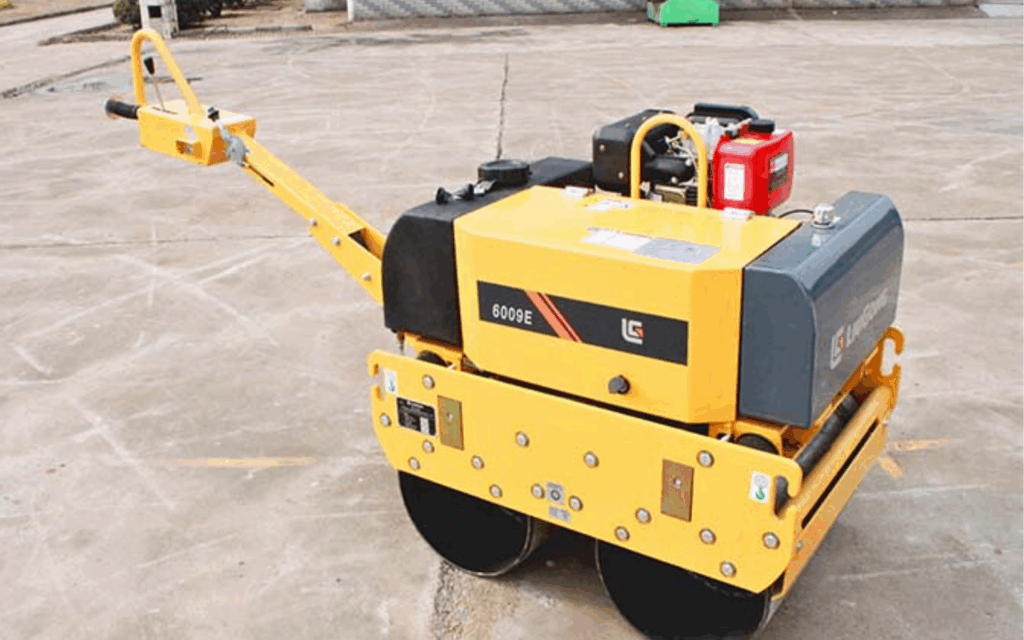

LiuGong 6009E Walk-Behind Roller – Compact Power for Precise Compaction
The LiuGong 6009E is a walk-behind vibratory roller built for reliable compaction in tight spaces. Powered by a KAMA 186F engine, this machine delivers 5.3 kW of output and a strong 30 kN centrifugal force.
Ideal for repair work, sidewalks, trenches, and road shoulders, the 6009E offers excellent maneuverability with hydrostatic drive, efficient hydraulic braking, and easy maintenance.
Whether for urban or construction projects in Saudi Arabia , it’s a perfect solution for compacting asphalt and soil with precision.
Configuration parameters
| ENGINE | Emission Regulation | Tier 3 / Stage III |
| Make | KAMA | |
| Model | 186F | |
| Rated Power | 5.3 kW (7.1 hp / 7.2 ps) @ 3,000 rpm | |
| Peak Torque | 18.9 N · m | |
| Number of Cylinders | 1 | |
| Aspiration | Natural | |
| Cooling Type | Air-cooled | |
| ELECTRICAL SYSTEM | System Voltage | 12 V |
| DRIVE TRAIN | Theoretical Gradeability | 30%/35% |
| Transmission Type | Hydrostatic | |
| Maximum Speed, Fwd | 0-3.6 km/h | |
| BRAKES | Service Brake Type | Hydraulic |
| Service Brake Actuation | Hydraulic | |
| Parking Brake Actuation | Mechanical apply, Hydraulic release | |
| HYDRAULIC SYSTEM | Main Pump Type | Piston pump |
| Main Relief Pressure | 20 MPa | |
| PERFORMANCE | Front Drum Static Linear Load | 52 N/cm |
| Rear Drum Static Linear Load | 60 N/cm | |
| Number of Vibrating Drums | 2 | |
| Nominal Amplitude Range | 0.35 mm | |
| Vibration Frequency Range | 55 Hz | |
| Centrifugal Force Range | 30 kN | |
| Number of Amplitude Settings | 1 | |
| OPERATING MASS | Operating Mass | 860 kg |
| Mass on Steering Drum | 400 kg | |
| Mass on Driving Drum | 460 kg | |
| SERVICE CAPACITIES | Fuel Tank | 5.5 L |
| Engine Oil | 1.65 L | |
| Hydraulic Oil Tank | 20 L |
