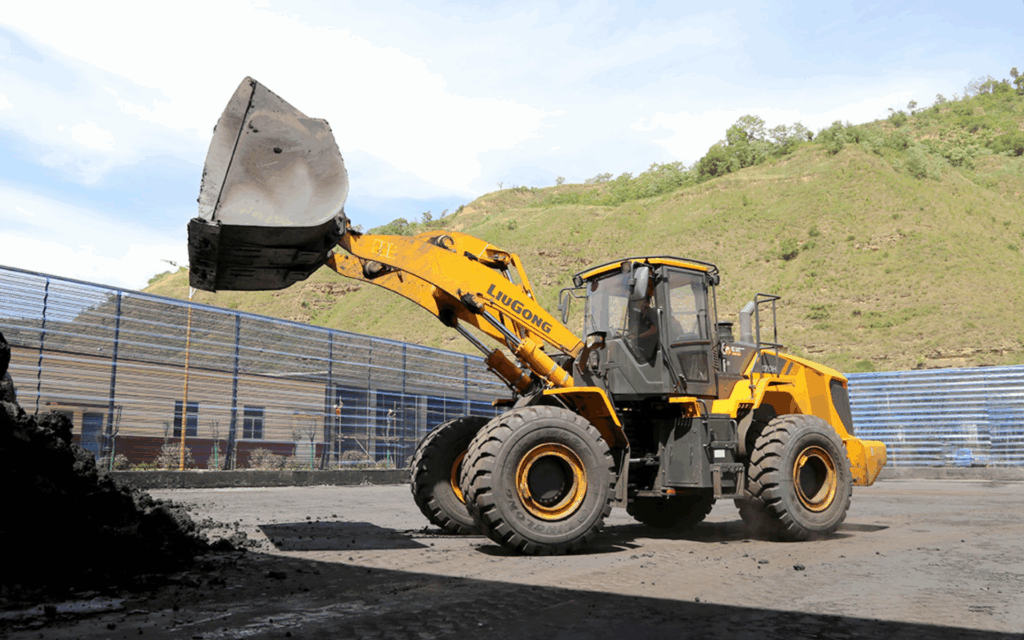

LiuGong 870H MAX Wheel Loader – High-Capacity Loader for Heavy-Duty Operations
The LiuGong 870H MAX is a powerful wheel loader built for the toughest material handling jobs.
Powered by a robust Cummins QSL9.3 engine, it delivers up to 160 kW and 1311 Nm of torque for unmatched productivity.
With a standard bucket capacity of 4.2 m³ and breakout force of 205 kN, this loader is engineered for quarries, mining, and heavy construction across Saudi Arabia.
Designed with operator comfort, durability, and reliability in mind — the 870H MAX helps you move more, faster.
Configuration parameters
| ENGINE | Emission Regulation | Tier 3 / Stage IIIA |
| Manufacturer | Cummins | |
| Model | QSL9.3 | |
| Rated Power | 190 kW (255 hp / 258 ps) @ 2,200 rpm | |
| Net Power | 178 kW (239 hp / 242 ps) @ 2,200 rpm | |
| Peak Torque | 1,187 N · m @ 1,300 rpm | |
| Displacement | 9.3 L | |
| Number of Cylinder | 6 | |
| Aspiration | Turbocharged & Air-to-air intercooled | |
| TRANSMISSION | Transmission Type | Countershaft, power shift |
| Torque Converter | Single stage, three elements | |
| Maximum Travel Speed, fwd | 36 km/h | |
| Maximum Travel Speed, rev | 24.2 km/h | |
| Number of Speed, fwd | 4 | |
| Number of Speed, Rev | 3 | |
| AXLES | Differential Front Type | Conventional |
| Differential Rear Type | Conventional | |
| Axle Oscillation | ± 10° | |
| STEERING | Steering Configuration | Articulated |
| Steering Relief Pressure | 21 MPa | |
| BRAKES | Service Brake Type | Wet discs brake |
| Service Brake Actuation | Hydraulic | |
| Parking Brake Type | Drum | |
| Parking Brake Actuation | Electro-hydraulic | |
| HYDRAULIC SYSTEM | Main Pump Type | Gear+Piston |
| Main Relief Pressure | 25 MPa | |
| Raise | 5.2 s | |
| Dump Time | 1.3 s | |
| Float Down Time | 3 s | |
| Fastest Total Cycle Time | 9.5 s | |
| SERVICE CAPACITY | Fuel Tank | 330 L |
| Engine Oil | 26 L | |
| Cooling System | 35 L | |
| Hydraulic System | 295 L | |
| Transmission and Torque Converter | 35 L | |
| Axles, Front/Rear | 57 L | |
| BUCKET PERFORMANCE | Reference Bucket | 3.0 – 7.0 m3 |
| TIRES | Tire Size | 26.5-25-28PR/TL L-3 |
