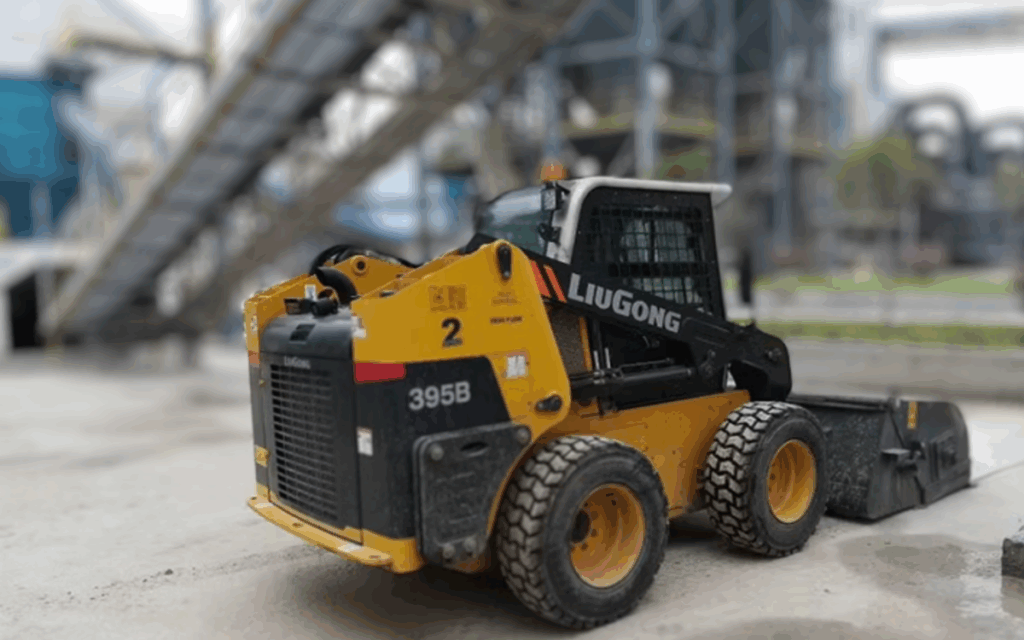

LiuGong 395B Skid Steer Loader – Compact Power for Versatile Operations
The LiuGong 395B is a high-performance skid steer loader built for versatility and power in confined spaces.
With a compact design and a breakout force of 32.4 kN, it’s ideal for loading, lifting, and site cleanup in tight areas. Powered by a reliable Perkins 404D-44T engine, it delivers 70 kW of gross power and handles up to 1,135 kg operating capacity.
Whether you’re working on urban projects, landscaping, or construction sites across Saudi Arabia, the 395B offers the control, strength, and stability you need
Configuration parameters
| ENGINE | Emission Regulation | EPA Tier 3 / EU Stage IIIA |
| Manufacturer | Perkins | |
| Model | 1104D-44T | |
| Gross Power | 70 kW (94 hp / 95 ps) @ 2,300 rpm | |
| Net Power | 67 kW (90 hp / 91 ps) @ 2,300 rpm | |
| Peak Torque | 392 N · m @ 1,400 rpm | |
| Number of Cylinders | 4 | |
| Displacement | 4.4 L | |
| Cooling Type | water | |
| ELECTRICAL SYSTEM | System Voltage | 12 V |
| Alternator Output | 85 amps | |
| TIRES | Ply Type | Vacuum |
| Tire Size | 12-16.5-12PR TI200 | |
| Ply Rating | 12 | |
| HYDRAULIC SYSTEM | System Type | Open |
| Standard Flow | 87.4 L/min | |
| Traveling Hydrostatic Pressure | 35 MPa | |
| Working Hydrostatic Pressure | 21 MPa | |
| Hydraulic Cycle Time, total | 10.43 s | |
| Raise Time | 4.54 s | |
| Dump Time | 3.22 s | |
| Lower Time (float down) | 2.67 s | |
| PERFORMANCE | Static Tipping Load | 2,267 kg |
| Rated Operating Capacity | 1,133 kg | |
| Boom Breakout Force | 26.6 kN | |
| Bucket Breakout Force | 32.2 kN | |
| Dump Clearance at Full Height Discharge | 2,572 mm | |
| Dump Reach at Full Height Discharge | 587 mm | |
| Maximum Dump Angle at Full Height | 39° | |
| Maximum Hinge Pin Height | 3,278 mm | |
| Bucket Rollback at Ground Level | 30° | |
| Ground Clearance | 200 mm | |
| Angle of Departure | 27° | |
| Front Clearance Radius with Bucket | 2,354 mm | |
| SERVICE CAPACITIES | Fuel Tank | 110 L |
| Engine Oil | 9 L | |
| Cooling System | 20 L | |
| Hydraulic Reservoir | 60 L | |
| Hydraulic System Total | 80 L | |
| Chain Tanks, Each | 13 L |
